Rotary Screen

A device for removing large amounts of impurities when generated by high tide or by separating large floating objects and coarse impurities at high tide and lifting them to the upper part of the waterway

Overview
Certification
Technology
Structural analysis

Technical overview

Rotary dust & debris precipitator is mainly used to separate floating and sedimentary impurities that flow into the drainage pumping station, relay pumping station, power plant cooling water, and water intaking station, and remove them after lifting, so that the pump can be operated stably. It is a device to protect doing such operation safely.

Features

In case of getting matters caught in the screen during operation of the dust & debris precipitator, it rotates individually with the elastic force of the rear part of the rake to protect the driving part and equipment.
After securing space by moving the front screen, it is easy to remove the soil and debris deposited under the dust & debris precipitator.
The operation method is easy and simple, and it is most suitable for the rainwater pumping station.
Unmanned automated operation possible by remote control device connecting with the pump.
The main part of the dust & debris precipitator is located above the water level, so maintenance is easy.
Easy individual replacement in case of damage to the individual reverse-rotating device of the rake or the movable front screen.
Remote operation control and monitoring possible with PC or smartphone.

Certification

Classification	Registration Number	Item and Name	Issuing Agency
Patent	10-1337421	Removable front screen	Korean Intellectual Property Office
Patent	10-1596915	Remote control system of dust & debris precipitator	Korean Intellectual Property Office
Patent	10-1603190	Dust & debris precipitator with the ability to cope with debris entrapment	Korean Intellectual Property Office
Patent	10-2015789	Rake with cutter, Dust & debris precipitator of individual reverse-rotating device type	Korean Intellectual Property Office
Utility Model Patent	20-0471404	Individual rake of reverse-rotating device of dust & debris precipitator	Korean Intellectual Property Office
Performance Certification	20-C0Z0382	individual reverse-rotating dust & debris precipitator with remote monitoring control type	Ministry of SMEs and Startups

Technology

1 Individual reverse-rotation of rake

When foreign matter is caught in the screen while the dust & debris precipitator is operated, it rotates individually with the elastic force of the rear part of the rake to protect the driving part and equipment
increase the operation efficiency of equipment

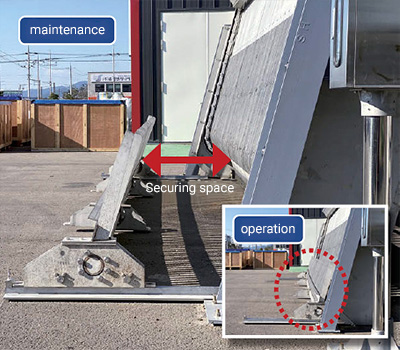

2 Removable front screen

After securing space by giving mobility to the front screen, the soil and debris deposited under the dust & debris precipitator are removed
Improvement of maintenance convenience and contaminant removal efficiency

3 Remote monitoring and control

Remote operation control and real-time monitoring function with PC or smartphone
Real-time record keeping of the operating status of the device

Structural analysis

Analysis Type	Parts	max. Displacement (㎜)	max. Stress (MPa)	Safety Factor	Evaluation
Structural Analysis	Bar Screen Assembly	0.27	10.97	18.69	OK
	Rake Assembly	0.84	34.68	5.91	OK
	Bar Screen Support Beam	0.26	10.58	19.38	OK
	Frame Assembly	0.51	25.63	8.00	OK
	Seal Plate Bracket Assembly	0.42	10.70	19.16	OK
	Apron Assembly	0.30	5.15	39.81	OK
	Chain Assembly	0.35	18.95	10.82	OK
