Sumersible Mixed Flow Pump
- Features
-
- It is optimally designed and manufactured for low-head and high-flow rate drain pumps.
- Easy to install and maintain with compact and lightweight design.
- It requires less installation area.
- As ancillary equipment is not required, the size of the pumping station is greatly reduced, thereby reducing equipment costs.
- It is possible to replace the existing vertical pump with a submersible pump without any structural changes.
- It uses impellers with perfect dynamic balancing and hydraulic balance.
- In the event of an abnormality, the abnormal part can be identified early by the monitoring system.
- Standard Specifications
-
- Total Pump Head : 4~30m
- Flow Rate : 10~600㎥/min
- Temperature : 0~45℃
- Diameter : 300~2400㎜
- Purpose
-
- For flood drainage
- Industrial water intake
- Sewer stormwater drainage
- Other large flow intake and drainage
- For agricultural water intake
Specification
| Item | Standard | Remark / Option | |
|---|---|---|---|
| Design Specification | Diameter | Ø300㎜ ~ Ø2400㎜ | |
| Flow Rate | 13㎥/min ~ 600㎥/min | ||
| Lift | 1.5m ~ 20m | ||
| Power | 15㎾ ~ 1000㎾ | ||
| Pumping Fluid Temp. | 0 ~ 45℃ | ||
| Material | Guide Casing | Gray Cast Iron (GC200) | Gray Cast Iron + Nickel (GC200 + Ni 1~2%) |
| Propeller / Impeller | Stainless Steel Cast Steel (SSC13) | Aluminum Bronze (AIBC3) | |
| Shaft | Stainless Steel (STS410) | ||
| Motor Frame | Gray Cast Iron (GC200) | Gray Cast Iron + Nickel (GC200 + Ni 1~2%) | |
| Production Specifications | Impeller Type | Axial Flow / Mixed Flow | |
| Shaft Seal | Double Mechanical Seal | Cartridge Double Bellows Seal | |
| Bearing | Ball Bearing | ||
| Motor Specifications | Motor Type | Air Filled Watertight | |
| Insulation class | F, B | ||
| Pump Starting Method | Star Delta Or Line Start | Auto Transformer | |
| Sensor |
|
||

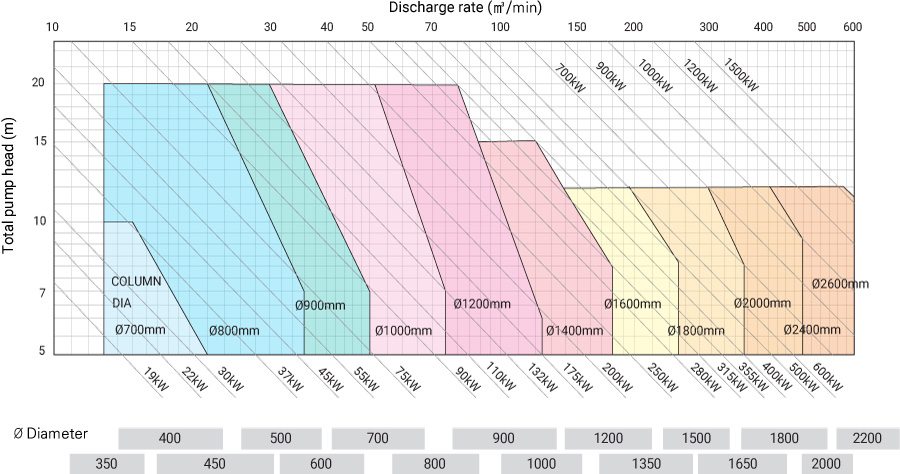

선정표
주요부 재질
| No. | Part Name | Material |
|---|---|---|
| 1 | Main Cable | PNCT |
| 2 | Sensor Cable | PNCT |
| 3 | Terminal Box | GC200 |
| 4 | Terminal Box Leak Detection Sensor | - |
| 5 | Upper Part Bearing | STEEL |
| 6 | Upper Part Bearing Temperature Sensor | - |
| 7 | Stator | SI |
| 8 | Motor Stator Temperature Sensor | - |
| 9 | Rotor | SI |
| 10 | Pump Shaft | STS410 |
| 11 | Frame | GC200 |
| 12 | Lower Part Bearing Temperature Sensor | - |
| 13 | Motor Internal Leak Detection Sensor | - |
| 14 | Thrust Bearing | Steel |
| 15 | Bearing Housing | GC200 |
| 16 | Double Mechanical Seal | SIC/SIC |
| 17 | Guide Casing | GC200 |
| 18 | Impeller | SSC13 |
| 19 | Impeller Nut | SSC13 |
| 20 | Suction pipe | GC200 |
External Dimensions
| Diameter:d | A | D | E | S | T | Pump Base | ||
|---|---|---|---|---|---|---|---|---|
| F | n | M | ||||||
| 350㎜ (14inch) | 430 | 700 | 1000 | 1050 | 700 | 1250 | 6 | 24 |
| 400㎜ (16inch) | 450 | 700 | 1000 | 1050 | 700 | 1300 | 6 | 24 |
| 450㎜ (18inch) | 500 | 800 | 1100 | 1200 | 800 | 1350 | 6 | 24 |
| 500㎜ (20inch) | 550 | 800 | 1100 | 1200 | 800 | 1500 | 6 | 24 |
| 600㎜ (24inch) | 600 | 900 | 1200 | 1350 | 900 | 1550 | 8 | 30 |
| 700㎜ (28inch) | 650 | 900 | 1200 | 1350 | 900 | 1650 | 8 | 30 |
| 800㎜ (32inch) | 750 | 1000 | 1300 | 1500 | 1000 | 1750 | 8 | 30 |
| 900㎜ (36inch) | 800 | 1200 | 1500 | 1800 | 1200 | 1950 | 8 | 30 |
| 1000㎜ (40inch) | 900 | 1200 | 1600 | 1800 | 1200 | 2100 | 12 | 30 |
| 1200㎜ (48inch) | 1050 | 1400 | 1800 | 2100 | 1400 | 2400 | 12 | 36 |
| 1350㎜ (54inch) | 1100 | 1600 | 2000 | 2400 | 1600 | 2400 | 12 | 36 |
| 1500㎜ (60inch) | 1150 | 1800 | 2200 | 2700 | 1800 | 2450 | 12 | 36 |
| 1600㎜ (64inch) | 1200 | 1800 | 2200 | 2700 | 1800 | 2550 | 12 | 36 |
| 1800㎜ (70inch) | 1300 | 2000 | 2400 | 3000 | 2000 | 2750 | 12 | 36 |
| 2000㎜ (80inch) | 1500 | 2400 | 2800 | 3600 | 2400 | 2550 | 16 | 36 |
| 2200㎜ (90inch) | 1700 | 2600 | 3000 | 3900 | 2600 | 2750 | 16 | 36 |
