Ductile Castiron Gate Valves For Water Works

The sluice valve is mainly used for water supply, and this valve meets the specifications of KS B 2334.
Opening/closing methods include manual, electric, open/close type(two-phase type) and cylinder type.
Approval for "written marking on the product" for sluice valves(Type 2, Type 3, Type 4, Type 5) has been approved by permission number 99-1010.

Standard

Type 2, Type 3 : 50 ~ 500㎜
Type 4, Type 5 : 50 ~ 500㎜
According to customer requirements, large diameter of 500㎜ or more can be manufactured.

Working Pressure

7.5K, 10K, 16K, 20K (※ High pressure of up to 20㎏f/㎠ or higher is possible according to customer's request.)

Valve Joint Part

Flange type, standard specification is KS B 2334, and other specifications are applicable according to customer's request.

Working Fluid

Water, water supply & sewage, seawater

Opening Direction

Counterclockwise (left)

Test Pressure

Test	7.5k(Type 2)	10K(Type 3)	16K(Type 4)	20K(Type 5)
Seat leak test	7.5㎏f/㎠	10㎏f/㎠	16㎏f/㎠	20㎏f/㎠
Inside of body pressure test	14㎏f/㎠	21㎏f/㎠	24㎏f/㎠	30㎏f/㎠

Material
Dimensions

Main part material

No	Part Name	Code	Material
1	Body	KS D4302 (Ductile Iron)	GCD 450
2	Bonnet	KS D4302 (Ductile Iron)	GCD 450
3	Disc	KS D4302 (Ductile Iron)	GCD 450
4	Stem	KS D3706 (Stainless Steel Bar)	STS304, STS420J2
5	Body Seat	KS D3705 (Hot Rolled Stainless Steel Sheet)	STS304
6	Disc Seat	KS D6024 (Copper & Copper Cast-Alloy)	ALBC
6	Disc Seat	KS D3705 (Hot Rolled Stainless Steel Sheet)	STS304

External Dimensions

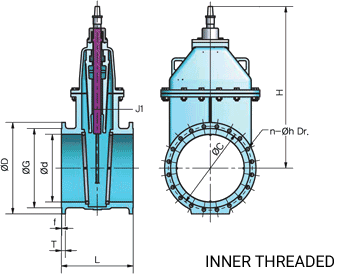

**Ductile Castiron Gate Valves for Waterworks Dimensions (Type 2, Type 3)** / Unit : ㎜
DN	L	Flange					Height
		Ø D	Ø G	Bolt Hole		T × f	H
		Ø D	Ø G	Ø C	n-Øh	T × f	C, F	Max
50	180	155	100	120	4-19	16 × 2	380	510
80	240	200	133	160	4-19	21(18) × 3(2)	450	620
100	250	220	153	180	8-19	21(18) × 3(2)	530	720
125	260	250	183	210	8-19(23)	22(20) × 3(2)	600	875
150	280	285	209	240	8-19(23)	22 × 3(2)	660	950
200	300	340	264	295	8-19(23)	23(22) × 3(2)	770	1200
250	380	395	319	350	12-23	24 × 3(2)	880	1400
300	400	445	367	400	12-23	25(24) × 3	980	1675
350	430	505	427	460	16-23	26 × 3	1090	1900
400	470	565	477	515	16-27	27(28) × 3	1230	2070
450	500	615	527	565	20-27	28(30) × 3	1340	2250
500	530	670	582	620	20-27	29(30) × 4(3)	1440	2450

1. The above dimensions apply only to the inner threaded type, and the figures in ( ) is Type 3.

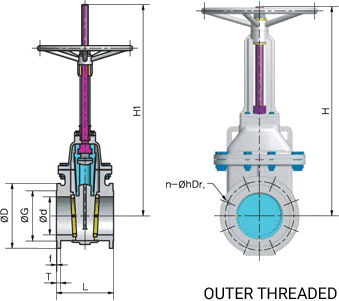

**Ductile Castiron Gate Valves for Waterworks Dimensions (Type 4, Type 5)** / Unit : ㎜
DN	L	Flange					Height
		Ø D	Ø G	Bolt Hole		T × f	H
		Ø D	Ø G	Ø C	n-Øh	T × f	C, F	Max
50	250	155	96	120	8-19	16(18) × 2	400	510
80	280	200	135	160	8-23	20(22) × 2	480	610
100	300	225	160	185	8-23	22(24) × 2	550	720
125	325	270	195	225	8-25	22(26) × 2	620	875
150	350	305	230	260	12-25	24(28) × 2	680	950
200	400	350	275	305	12-25	26(30) × 2	790	1200
250	450	430	345	380	12-27	28(34) × 2	920	1440
300	500	480	395	430	16-27	30(36) × 3	1040	1675

1. The flange is KS B 2334 standard, and other standards can be applied upon request.
2. The face-to-face distance of the valve is KS B 2334 standard, and other standards can be applied upon request.
